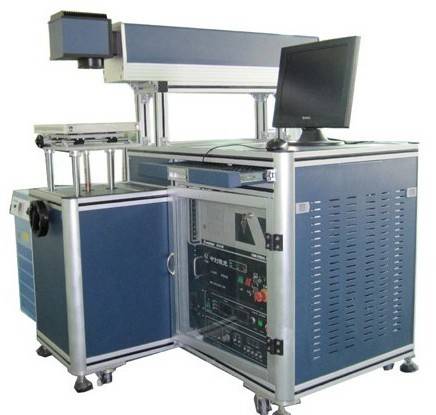

| YAG Laser Marking Machine - CCM-LM60
Specifications：CCM-LM60 |
Brief Introduction:
1. YAG side-pumped laser possesses the most sophisticated technology, the earliest one in laser application.
2. It’s the cheapest laser marking machine.
3. Can quickly mark letter, figure, graphics or auto-coding, serial No., batch No., barcode, 2 -D code, etc. on metal or nonmetal surface (plastic, silicon or porcelain, etc.) which are precise, permanent, non-polluting and environment-friendly.
4. High-speed YAG laser marking machine is mainly equipped with lamp-pumped laser tube, continuous YAG Laser electricity source, A/O Q switch, driver, high-speed X-Y axes galvanometer scanning mirror, water cooling unit., movable workable, computer control system and marking software.
Equipment Features:
1. With UK imported porcelain syntonic cavity which is stable, dew free, efficient in conversion and no plating sheet peel off, laser life is long.
2. Full sealed and maintenance-free laser optic system which key components all imported from USA or UK, which install-and-play without adjustment.
3. Can be used under wide range of environment temperature,24-hour continuous working is reliable. Be applicable to production line for flying marking.
4. With red light preview function, mirror marking function.
5. Rotary worktable system is optional, thus, accomplish marking on cambered surface.
6. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.

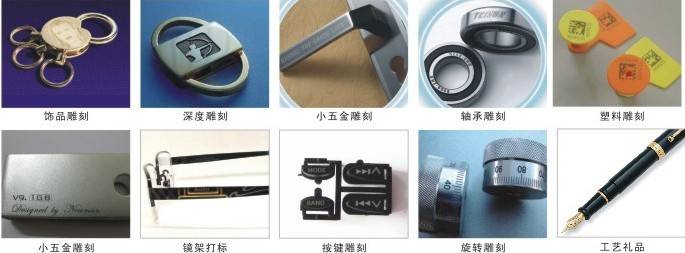

Application Industry:
Materials: all metals, plastic (including all sorts of engineering plastics), rubber, plating film, stone, silicon etc.
Fields: Electronics, Communication, Electric equipment, Computer, Glasses, Clock, Ornaments, Automobile parts, Metal products, Presents, Brand etc.
Technical parameters:
|
Laser wavelength: |
1064nm |
|
Laser power: |
60W |
|
Working area: |
100X100mm~200X 200mm |
|
Marking depth: |
≤0.5mm |
|
Marking speed: |
≤7000mm/s |
|
Min. character: |
0.3mm |
|
Repeated precision: |
±0.003mm |
|
Average power consumption: |
≤3kw |
|
Power supply : |
380V/50HZ 20A |
