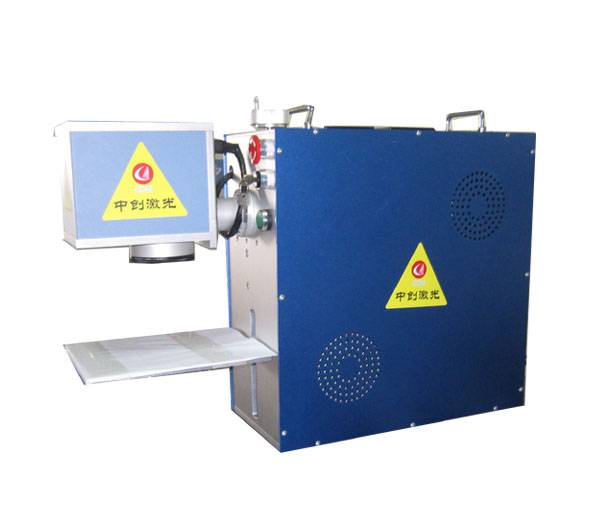

| Diode Pump Laser Marker - CLM-10W
Specifications：CLM-10W |
Equipment Features:
1,Adopting integrated design of whole structure.Full sealed laser optic system ,don’t need to adjust.Can be directly used when it connect with source and computer.
2, High-precision, high-speed marking Performance.
3,Easy operation,Powerful software,easy to edit .
4,Advanced laser technology, low running cost and maintenance cost.
5,Small size,easy to carry,apply to work in the narrow environment.
6, Can be transported by express, Save delivery time.
Technical Parameters
|
Laser power |
10W(USA laser source) |
|
|
Laser Wavelengths |
1064nm |
|
|
Beam quality |
M2<1.5 |
|
|
Laser Repetition Rate |
20-100KHZ |
|
|
Marking speed |
≤6000mm/s |
|
|
Min.width |
0.01mm |
|
|
Working area |
70mmX70mm |
|
|
100mmX100mm |
||
|
Min. characters |
0.15mm |
|
|
Orientation precision |
0.001mm |
|
|
Average power consumption |
500W |
|
|
Power |
AC220V±10%/50Hz/5A |
|
|
Cooling style |
Air cooling |
|
|
Laser tube lifetime |
50000Hours |
|
|
Packing Size : |
500X400X560mm |
|
|
N.W |
42Kg |
|

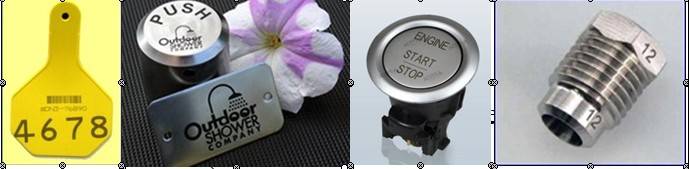

Applied industry and materials
Materials:Any metal materials,engineering plastic,plating coating materials,spray material,plastic,rubber,epoxy resin,ceramic,and other materials.
Industry: electronic components,integra ted circuits(IC),electrical applicances,communication products,sanitary ware,tools,accessories,knives,glasses,clocks and watches,jewellery,automobile accessories,bags decorated clasps,cookers,stainless steel products and other undustries.
